Sub components

Sub Components
莹和科技正在批量生产电动汽车相关子部件SR、IBS、DC Filter, AC Power Outlet, Aux Battery Box等。

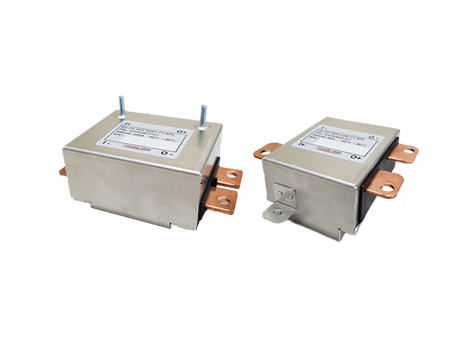

  • DC Filter
    Low / Hight - Voltage DC Filter

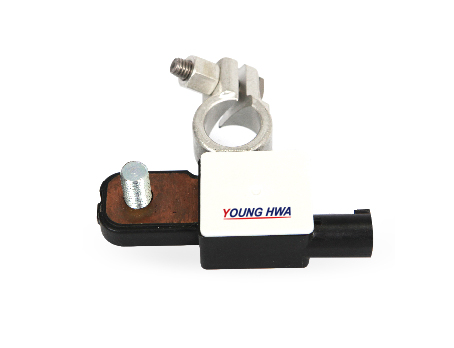

  • IBS (Intelligent BatterySensor)
    Battery sensor of 12V lead-acid battery (Flooded Type, AGMType)
    SOC, SOH,SOF for Energy management and ISG (Idle stop & go) (60A, 70A, 80A)

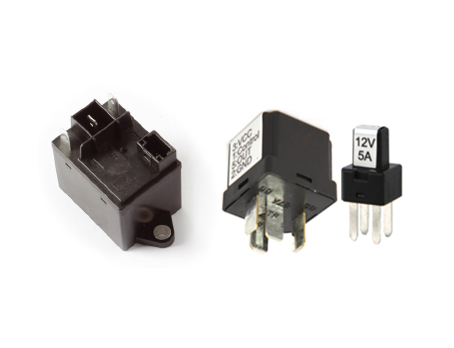

  • HV SSR / LV SSR (Solid StateRelay)
    High voltage high current circuit breaker for temperature control of high voltage battery pack . High switching speed, less noise, and longer life time (400Volt /10A, Ultra 12V/30A, 20A, Mini 12V/5A)

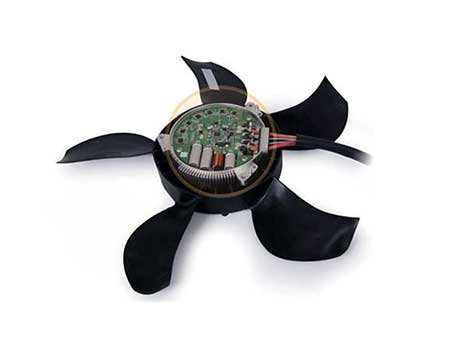

  • CFC (Cooling Fan Controller)
    PID controls the target RPM of the BLDC motor based on the information received from the engine ECU ( 400Watt ~ 800Watt )

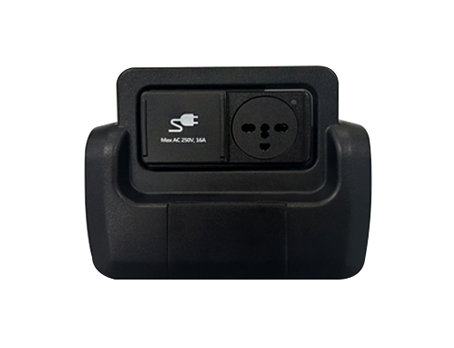

  • AC Power Outlet
    Integrated type AC Power Outlet for V2L
    Supplied power up to 3.6kW
    AC power source ON/OFF and Over Temp. control
    Automatic AC power turned off when AC plug is disconnected.

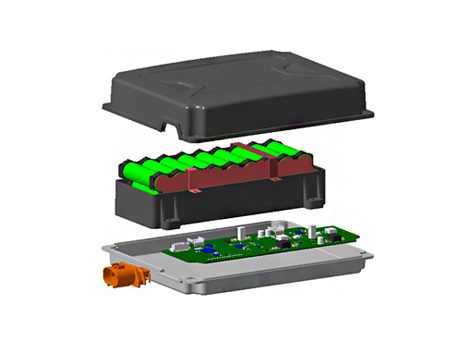

  • Aux. Battery Box
    Input range : 11 ~ 16Vdc, Max. 30A@ cell temp. 40℃
    High charging efficiency : Up to 85%
    Applied single phase charging topology
    Direct connection between PCB and Battery module
    Applied to lower case for good heat dissipation
